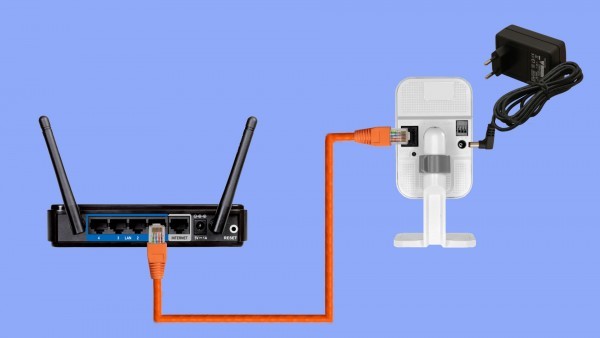

Connection diagram of an IP camera with a power supply to a network router.

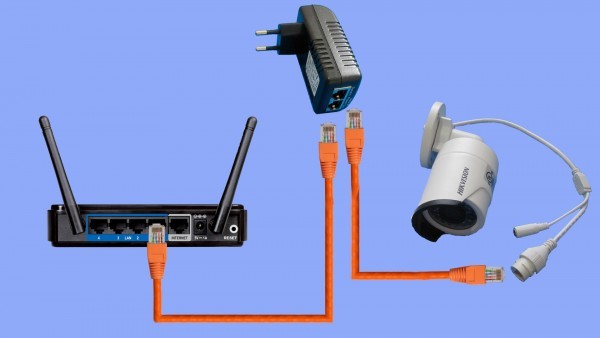

Wiring diagram for ip camera with PoE injector.
Sometimes, in addition to the LAN port, the camera can be connected wirelessly via Wi-Fi. However, in any case, the camera will be powered using one of the two options mentioned above.
